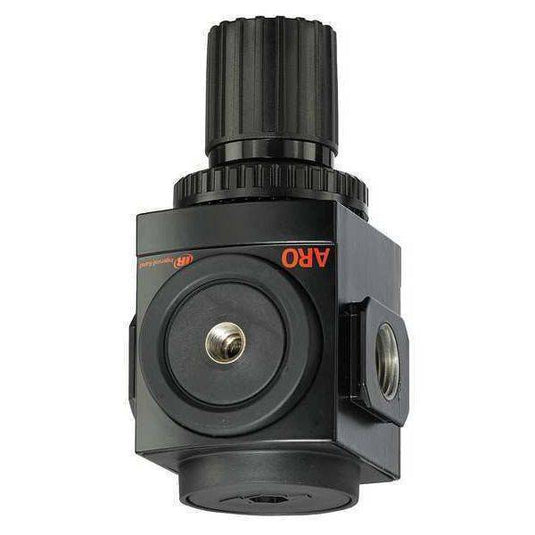

The ideal choice where small compact general purpose pressure control is required. Features a rugged aluminum body with easy to adjust non-rising, push-to-lock knob. Unique rolling-diaphragm provides higher sensitivity and flow when compared to traditional flat diaphragm regulators in a very small package. Regulator can be mounted inline, panel mounted or wall mounted. (L-type mounting bracket and panel mount nut included with each regulator)
Port Size: 1/8" NPT female
Gauge Port: 1/8" NPT female (front & back)
Pressure Range: 0-30 PSI
Flow Capacity: 15 SCFM
Maximum Inlet Pressure: 145 PSI
Body Material: Painted aluminum die cast
