Glacier Diesel Power Fuel Boss Mechanical Lift Pump | 1998.5–2002 Dodge Ram 5.9L Cummins VP44 (FB-98502)
Description
The Glacier Diesel Power Fuel Boss is the ultimate mechanical lift pump system for 1998.5–2002 Dodge Ram 5.9L Cummins trucks equipped with the VP44 injection pump.
Unlike traditional aftermarket lift pumps that rely on electric motors, electronic controllers, and constant-speed operation, the Fuel Boss is driven directly from the engine's crankshaft. As engine RPM increases, the Fuel Boss automatically increases fuel pressure and fuel volume to match engine demand—just as a factory mechanical fuel pump should.
The result is a simple, dependable fuel delivery system that eliminates many of the common failure points associated with electric lift pumps while providing exceptional reliability for stock, towing, performance, and competition applications.

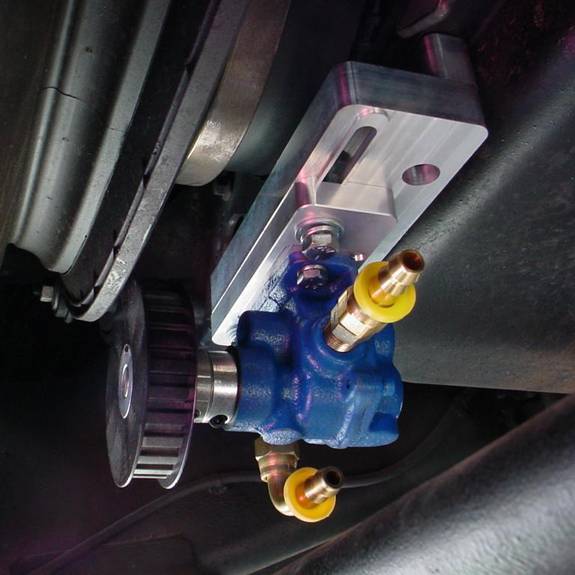

At the heart of every Fuel Boss is the proven FB-1000 mechanical gear pump, featuring precision straight-cut steel gears, a 100% Viton® shaft seal, and a rugged design capable of producing well over 100 PSI internally. Operating through a 2:1 reduction drive ratio, the pump turns at only half engine speed, dramatically reducing wear while delivering consistent fuel pressure across the entire operating range.
Whether you're protecting a brand-new VP44 or replacing a failing factory lift pump, the Fuel Boss delivers dependable fuel pressure backed by Glacier Diesel Power engineering.
Features

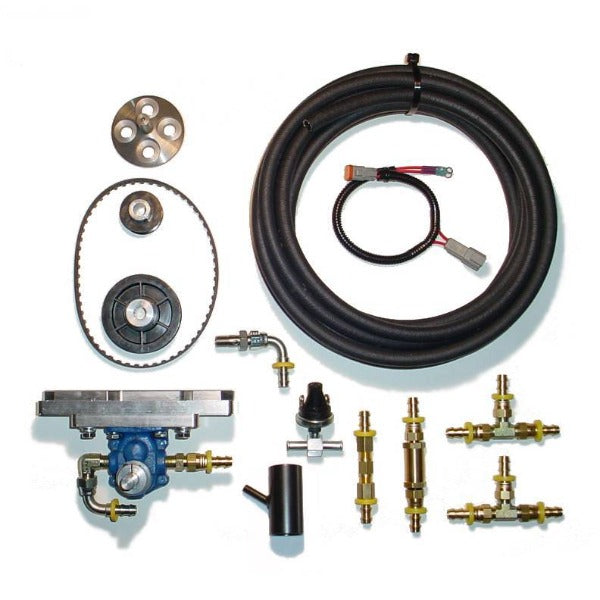

- Complete crankshaft-driven mechanical lift pump system
- Designed specifically for 1998.5–2002 Dodge Ram 5.9L Cummins
- Eliminates continuous operation of the factory electric lift pump
- FB-1000 precision gear-driven mechanical pump
- Straight-cut steel gears
- 100% Viton® shaft seal
- Compatible with ULSD, biodiesel, and many alternative diesel fuels
- Polycarbonate drive pulleys
- Nylon-covered fiberglass-reinforced neoprene drive belt
- 2:1 drive ratio for exceptional pump longevity

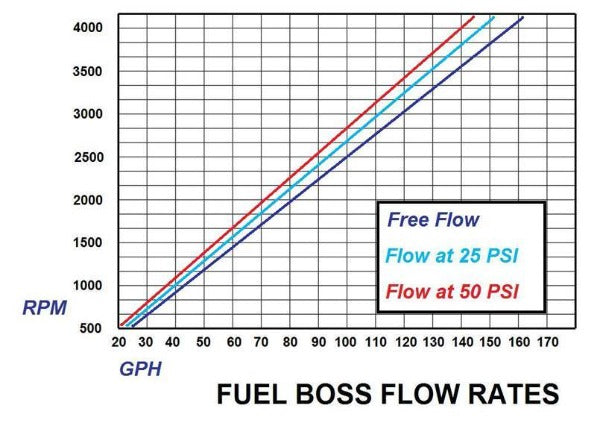

- Fuel pressure increases with engine RPM
- Hyper Drive upgrade available for increased pump output
- Recommended belt service interval: 50,000–75,000 miles
Why the VP44 Needs Reliable Fuel Pressure
The VP44 injection pump depends on a steady supply of fuel for both lubrication and cooling.
When lift pump pressure drops too low, the VP44 receives less fuel than it was designed to operate with. Low inlet pressure can contribute to overheating and accelerated wear inside the injection pump, which is why maintaining adequate lift pump pressure has long been considered one of the most important aspects of VP44 reliability. Many experienced Cummins owners monitor lift pump pressure closely for this reason.
The factory electric lift pump was one of the weakest links in the 1998.5–2002 fuel system.
The Fuel Boss was designed to eliminate that concern by replacing continuous electric lift pump operation with a crankshaft-driven mechanical pump that delivers fuel whenever the engine is running.
How the Fuel Boss Works
Rather than relying on an electric motor spinning at a constant speed, the Fuel Boss is mechanically connected to the engine through a crankshaft-mounted drive pulley.
As engine RPM increases:
- Pump speed increases.
- Fuel volume increases.
- Fuel pressure remains consistent under load.
Instead of watching fuel pressure fall during acceleration, many owners observe pressure remain stable—or even increase—as engine RPM climbs. This gives the VP44 the fuel supply it needs during towing, performance driving, or heavy loads.
Glacier Tech Tip
One of the biggest misconceptions about mechanical lift pumps is that they operate at engine speed.
They don't.
The Fuel Boss uses a 2:1 reduction drive, meaning the FB-1000 pump rotates at only half the crankshaft speed. At normal highway cruise, the pump operates at roughly 25% of its maximum rated RPM, providing outstanding reliability while still delivering more than enough fuel for nearly every VP44-powered truck.

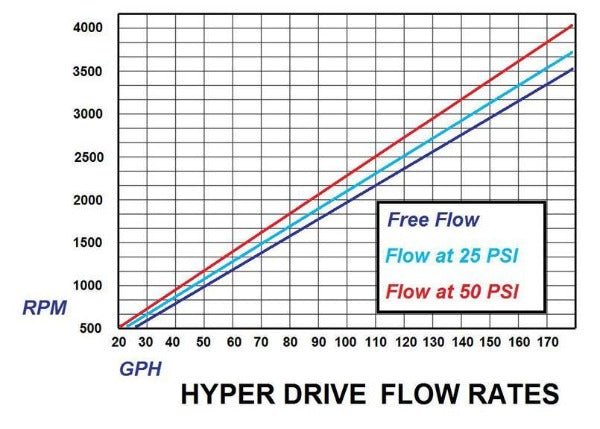

For customers running very large injectors, aggressive fueling, or competition setups, Glacier also offers a Hyper Drive Upgrade, increasing pump speed and fuel output by approximately 20% over the standard drive ratio.
Why Keep the Factory Lift Pump?
One of the unique design features of the Fuel Boss system is that the original electric lift pump is retained—but only for priming.
During engine startup, the factory pump runs briefly to fill the fuel filter housing.
Once fuel pressure reaches the proper level, a Hobbs pressure switch turns the factory pump off, allowing the Fuel Boss to take over completely. The factory lift pump is no longer required during normal operation, reducing wear while still providing convenient filter priming after maintenance.
Why Choose the Fuel Boss?
Unlike conventional electric lift pumps, the Fuel Boss eliminates many common failure points, including:
- Electric motors
- Brushes
- Armatures
- Electronic speed controllers
- Continuous motor operation
- Heat-related electrical failures
Instead, it uses a proven mechanical gear pump driven directly by the engine. The result is a simpler, more robust fuel delivery system designed for long-term reliability.
Applications
Fits:
- 1998.5 Dodge Ram 2500 5.9L Cummins
- 1999 Dodge Ram 2500 5.9L Cummins
- 2000 Dodge Ram 2500 5.9L Cummins
- 2001 Dodge Ram 2500 5.9L Cummins
- 2002 Dodge Ram 2500 5.9L Cummins
Also fits equivalent 3500 models equipped with the VP44 fuel system.
Fitment Notes
- Designed for trucks with the factory harmonic balancer.
- Not compatible with many aftermarket harmonic balancers, including Fluidampr-style units, due to dimensional differences.
- Not intended for trucks already converted to an in-tank lift pump configuration. Contact Glacier Diesel Power for application-specific options.
Important Notes
- Complete Fuel Boss mechanical lift pump system.
- Uses the FB-1000 mechanical gear pump.
- Hyper Drive upgrade available separately.
- Belt inspection recommended during routine maintenance.
- Belt replacement recommended every 50,000–75,000 miles.
- Not legal for sale or use in California.
Common Failure Point
Fuel delivery problems are often blamed on the lift pump when another component is actually at fault.
Before replacing any pump, inspect:
- Fuel filters
- Supply lines
- Air leaks
- Belt condition
- Belt tension
- Drive pulley alignment
- Fuel pressure under load
Because the Fuel Boss is mechanically driven, diagnosing issues is generally straightforward. Proper maintenance of the belt, filters, and plumbing will help ensure years of reliable operation.
Complete Your Fuel Boss System
Get the most from your Fuel Boss with genuine Glacier Diesel Power components:
- FB-1000 Replacement Mechanical Pump
- Standard Drive Replacement Belts
- Hyper Drive Upgrade Kit
- Replacement Check Valve
- Fuel Boss Filters
- Fuel Pressure Gauge
- Fuel Pressure Test Kit
- Replacement Drive Components
The Fuel Boss isn't simply another aftermarket lift pump—it's a complete rethinking of how fuel should be delivered to a VP44-equipped Cummins. By replacing continuous electric pump operation with a crankshaft-driven mechanical system, it delivers dependable fuel pressure, exceptional durability, and the confidence that your VP44 is receiving the fuel it needs from idle to full throttle. For many Cummins owners, it's one of the most significant reliability upgrades they can make.
