Glacier Diesel Power Fuel Boss Mechanical Lift Pump System | 2003–2004.5 Dodge Ram 5.9L Cummins
Description
Your VP44 injection pump depends on one thing to survive—a constant supply of clean fuel at the proper pressure.
Unfortunately, the factory electric lift pump used on the 2003–2004.5 5.9L Cummins has earned a reputation as one of the weakest links in the fuel system. As electric pumps age, fuel pressure often drops under load, increasing the risk of poor performance and premature VP44 failure.
The Glacier Diesel Power Fuel Boss Mechanical Lift Pump System eliminates that concern by replacing the factory electric lift pump with a belt-driven mechanical pump that is powered directly from the engine's crankshaft. Instead of relying on an electric motor that can overheat or fail unexpectedly, the Fuel Boss delivers fuel mechanically, increasing output as engine RPM rises.
At the heart of the system is the FB-1000 straight-cut gear pump, capable of producing well over 100 PSI while operating at only half of engine speed through the standard 2:1 drive ratio. The pump contains no bearings to wear out, uses a 100% Viton® shaft seal compatible with ULSD, biodiesel, and many alternative diesel fuels, and is designed for exceptional long-term durability.
The result is a lift pump system engineered to outlast conventional electric pumps while supplying the consistent fuel pressure that the VP44 injection pump demands.
Features
- Designed specifically for 2003–2004.5 Dodge Ram 5.9L Cummins
- Engine-driven mechanical lift pump
- FB-1000 straight-cut gear pump
- No electric motor to fail during operation
- No pump bearings to wear out
- Fuel pressure increases with engine RPM
- 100% Viton® shaft seal
- Compatible with ULSD and biodiesel
- Supports everything from stock trucks to high-horsepower fuel systems
- Factory lift pump retained for automatic priming after filter changes
- Hobbs pressure switch automatically disables the factory pump after startup
- Polycarbonate drive pulley
- Fiberglass-reinforced neoprene belt
- Standard 2:1 drive ratio
- Hyper Drive upgrade available for approximately 20% additional pump output
- Made in the USA
Why Choose a Mechanical Lift Pump?
Electric lift pumps have one major disadvantage:
They produce the same output regardless of engine RPM.
As engine demand increases, many electric pumps begin to lose pressure precisely when the engine needs fuel the most.
The Fuel Boss works differently.
Because it's driven directly from the crankshaft, pump speed increases with engine RPM. As engine fuel demand rises, the pump naturally delivers more fuel, helping maintain stable pressure throughout the operating range.
Instead of watching fuel pressure fall during heavy acceleration or towing, many customers see fuel pressure remain stable—or even increase—as RPM climbs.
Glacier Tech Tip
One of the biggest misconceptions in the diesel industry is that high flow and high pressure are the same thing.
They're not.
Your VP44 doesn't need excessive fuel pressure—it needs consistent fuel volume without pressure drop.
A properly sized mechanical lift pump supplies the fuel volume the injection pump requires while maintaining stable inlet pressure. That stability helps reduce unnecessary stress on the VP44 and promotes reliable fuel delivery under every driving condition.
The Fuel Boss accomplishes this without relying on electric motors, brushes, armatures, or electronic pump controllers.
Why the Fuel Boss Is Different
Many aftermarket lift pumps are still electric.
That means they rely on:
- Electric motors
- Brushes
- Bearings
- Internal electronics
- Wiring
- Relays
- Continuous electrical operation
The Fuel Boss removes nearly all of those potential failure points.
The FB-1000 gear pump features:
- Straight-cut steel gears
- No internal bearings
- Extremely low operating RPM
- Heavy-duty mechanical construction
- Viton® shaft seal
- Long service life
Running at approximately half of engine speed, the pump operates at only a fraction of its design capability during normal highway driving, contributing to exceptional longevity.
Fuel Pressure That Follows Engine Demand
One of the Fuel Boss's greatest advantages is how it responds to throttle input.
Traditional electric pumps:
- Fixed pump speed
- Pressure often decreases under heavy load
Fuel Boss:
- Pump speed increases with RPM
- Fuel volume increases with demand
- Stable fuel pressure under acceleration
- Excellent towing performance
- Outstanding support for larger injectors and performance modifications
Simply put, the harder your engine works, the harder the Fuel Boss works.

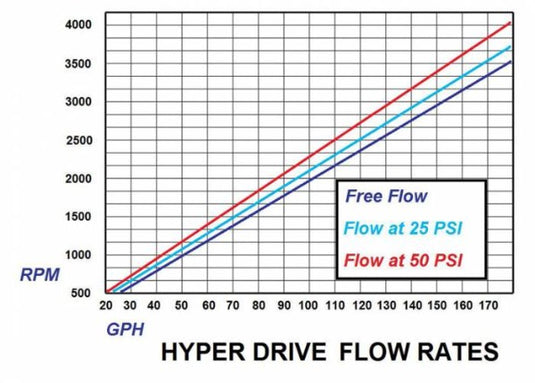

Hyper Drive Upgrade
For customers building high-horsepower trucks, Glacier offers the optional Hyper Drive pulley system.
The Hyper Drive increases pump speed by approximately 20% over the standard 2:1 drive ratio, providing even greater fuel delivery for aggressive fueling combinations.
Applications
Fits:
- 2003 Dodge Ram 2500 5.9L Cummins
- 2003 Dodge Ram 3500 5.9L Cummins
- 2004 Dodge Ram 2500 5.9L Cummins
- 2004.5 Dodge Ram 3500 5.9L Cummins
Engine:
- 5.9L Cummins ISB
- VP44 fuel system
Important Notes
- Designed for trucks with the factory filter-mounted lift pump configuration.
- Not compatible with trucks converted to an in-tank lift pump. If your truck has already been converted, use the 2005–2007 Fuel Boss system instead.
- Does not work with aftermarket harmonic balancers such as Fluidampr® due to dimensional differences.
- Does not ship to California.
- Belt inspection is recommended during routine maintenance, with replacement typically every 50,000–75,000 miles depending on operating conditions.
Common Failure Point
The VP44 injection pump depends on fuel not only for combustion, but also for lubrication and cooling.
When lift pump pressure falls because of a weak or failing electric pump, the VP44 may receive insufficient fuel volume under load. Over time, repeated low-pressure events can contribute to premature wear and expensive injection pump failures.
The Fuel Boss was engineered to eliminate one of the most common causes of VP44 fuel supply issues by replacing the factory electric lift pump with a durable, engine-driven mechanical system that delivers fuel whenever the engine is running.
Complete Your Fuel System
Maximize the reliability of your VP44 fuel system with:
- Glacier Diesel Power Fuel Pressure Test Kit
- Glacier Diesel Power Fuel Pressure Test Fittings
- Fleetguard FS1001 Fuel & Water Separator
- Fleetguard FF5814 NanoNet® Fuel Filter
- Fuel Boss Hyper Drive Upgrade
- Replacement Fuel Boss Belts
- Fuel Boss Replacement Mechanical Pump
- Glacier Diesel Power Fuel System Diagnostic Components
Whether your truck is a dependable daily driver, a dedicated tow rig, or a high-performance street build, the Fuel Boss Mechanical Lift Pump System provides the consistent fuel delivery and mechanical reliability needed to protect your VP44 and keep your 5.9L Cummins performing at its best for years to come.
