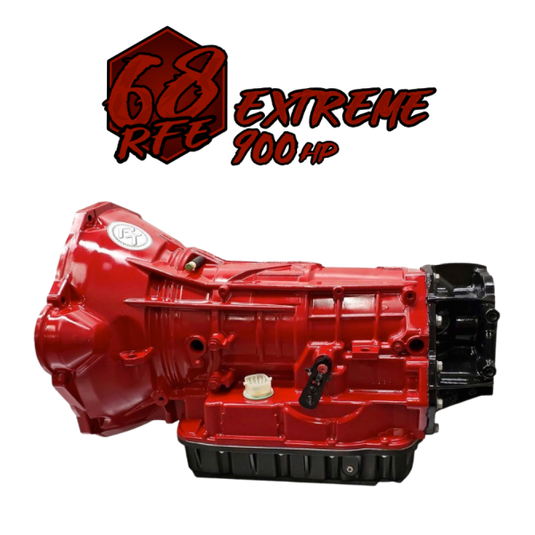

Stage 3 "Extreme" - 900HP Max - Requires Transmission Tuning
- Babymaker1000 valve body
- billet accumulators and cover providing 3 additional bolts
- Bonded gasket plate
- HD billet channel plate
- Transgo SSV valves
- OE solenoid block
- Revmax 850 input drum
- 2c power-packed with billet piston
- TCS Low/Reverse Sprag update
- HD Cast aluminum deep pan
- Pumps are vacuum tested and repaired as required
- PR valve, TCC limit valve, Pump bushing and new gears when warranted.
- Maraging input shaft
- OE line pressure sensor
- RANDYS HD Billet triple lock torque converter
- Bonded pistons
- 14 L/R clutches
- Bushings and Bearings are speced and replaced as required
- Steel spin on filter adapter
- Revmax Steel center support with 5 4c clutches and billet
piston - new 4th billet hub
- Tig welded Low Reverse planet
WARRANTY
68RFE 1 Year 12,000 mile limited warranty will not cover broken cases or shafts of transmission including the 4th clutch hub. Any tires larger than a 35” tire must have proper gearing or warranty will be voided. Vehicle owner is responsible for having proper transmission tuning as transmission failure due to lack of tuning or improper tuning will not be a covered failure. Abuse, misuse, or burn down due to operator error will void warranty. Any warranty work must be performed at Randy’s Transmissions in Tooele UT. It is the vehicle owner’s responsibility to ship transmission or vehicle to Randy’s location for any and all repairs needing to be performed. Any repairs to transmission not authorized by Randy’s Transmissions will void warranty and will not be covered by Randy’s Transmissions.
WARRANTY IS NON-TRANSFERRABLE
Appropriate gear ratios
- 35" tire min gearing is 3:73 recommended 4:10
- 37" tire min gearing is 4:10 recommended 4:30
- Larger than that should be running a 4:56 ratio
