SKU: 68RFE-931

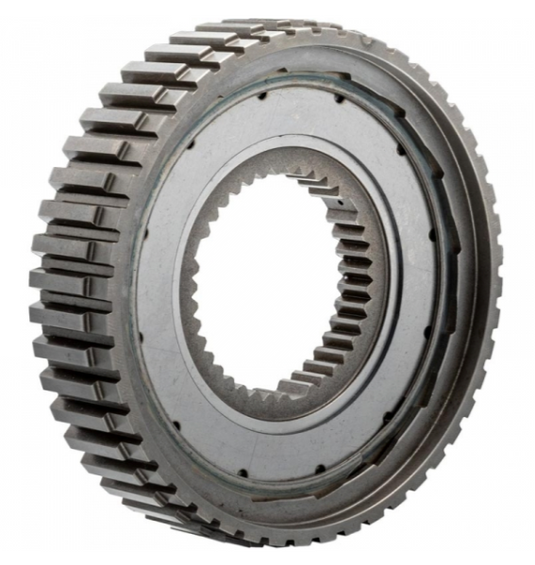

RevMax | 2007.5-2018 Dodge Ram 68RFE Low Reverse Sprag / Roller Clutch Assembly

Vendor RevMax
Regular price $699.00
Sale price $699.00 Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

The other upgraded sprags or roller clutches use a 45RFE low roller clutch and cut the top off of it to fit into the 68RFE external race and machine the inner race to fit. While this does provide a roller clutch assembly it also a poorly designed and executed. In many cases its failure will cause catastrophic failure. By machining the top of the plastic roller housing, you eliminate the support where the rollers push against the cage. When subjected to abuse, this cage which is made of phenolic plastic will buckle and the roller clutch will explode. When this happens the entire gear train is usually destroyed and a whole new core is needed to rebuild the transmission. If the factory dog bone fails, there is no other damage caused to the geartrain as they simply flip and will not apply versus an explosion on the aftermarket designs. To sum it up, you’re better off leaving a stock dog bone sprag in the unit versus installing one of these aftermarket “upgraded” designs. You ask, how do we know all of this? We used to use this part ourselves and have seen what happens. We needed a real solution, not a ticking time bomb.

Revmax has once again pioneered and re-engineered a fix to a problem that others have not been able to rather than employ empty marketing tactics. Our new PATENT PENDING, Billet, All Steel “Pro Mod” Low Reverse Roller assembly is the pinnacle of years of work. Our design retains nothing from the factory doge bone sprag and utilizes no used or reclaimed parts from any other transmission. Best of all, it is a 100% STEEL design. There isn’t any plastic on this part anywhere. Utilizing a “pro-mod” roller clutch that is used in cars up to 3000HP this design will give you the confidence of finally being able to use the truck the way you wanted to!

Make no mistake, there are NO OTHER designs on the market that have our technology. ALL of the other designs are either butchered PLASTIC 45RFE roller clutches or a factory dog bone design. No core is required for this part as there is no need for your core to build from as this is a 100% BRAND NEW part! This part is a drop-in replacement and requires no machining!

The RevMax Pro Mod 68RFE Low Reverse Sprag/Roller Clutch assembly comes complete with the following components:

  • 2- Spiral Lock Snap Rings
  • 1-Hardened outer race
  • 1-Hardened inner race
  • 2- Wear /Shim plates
  • 1- All Steel Low Roller Clutch
Product Details

The other upgraded sprags or roller clutches use a 45RFE low roller clutch and cut the top off of it to fit into the 68RFE external race and machine the inner race to fit. While this does provide a roller clutch assembly it also a poorly designed and executed. In many cases its failure will cause catastrophic failure. By machining the top of the plastic roller housing, you eliminate the support where the rollers push against the cage. When subjected to abuse, this cage which is made of phenolic plastic will buckle and the roller clutch will explode. When this happens the entire gear train is usually destroyed and a whole new core is needed to rebuild the transmission. If the factory dog bone fails, there is no other damage caused to the geartrain as they simply flip and will not apply versus an explosion on the aftermarket designs. To sum it up, you’re better off leaving a stock dog bone sprag in the unit versus installing one of these aftermarket “upgraded” designs. You ask, how do we know all of this? We used to use this part ourselves and have seen what happens. We needed a real solution, not a ticking time bomb.

Revmax has once again pioneered and re-engineered a fix to a problem that others have not been able to rather than employ empty marketing tactics. Our new PATENT PENDING, Billet, All Steel “Pro Mod” Low Reverse Roller assembly is the pinnacle of years of work. Our design retains nothing from the factory doge bone sprag and utilizes no used or reclaimed parts from any other transmission. Best of all, it is a 100% STEEL design. There isn’t any plastic on this part anywhere. Utilizing a “pro-mod” roller clutch that is used in cars up to 3000HP this design will give you the confidence of finally being able to use the truck the way you wanted to!

Make no mistake, there are NO OTHER designs on the market that have our technology. ALL of the other designs are either butchered PLASTIC 45RFE roller clutches or a factory dog bone design. No core is required for this part as there is no need for your core to build from as this is a 100% BRAND NEW part! This part is a drop-in replacement and requires no machining!

The RevMax Pro Mod 68RFE Low Reverse Sprag/Roller Clutch assembly comes complete with the following components:

  • 2- Spiral Lock Snap Rings
  • 1-Hardened outer race
  • 1-Hardened inner race
  • 2- Wear /Shim plates
  • 1- All Steel Low Roller Clutch
